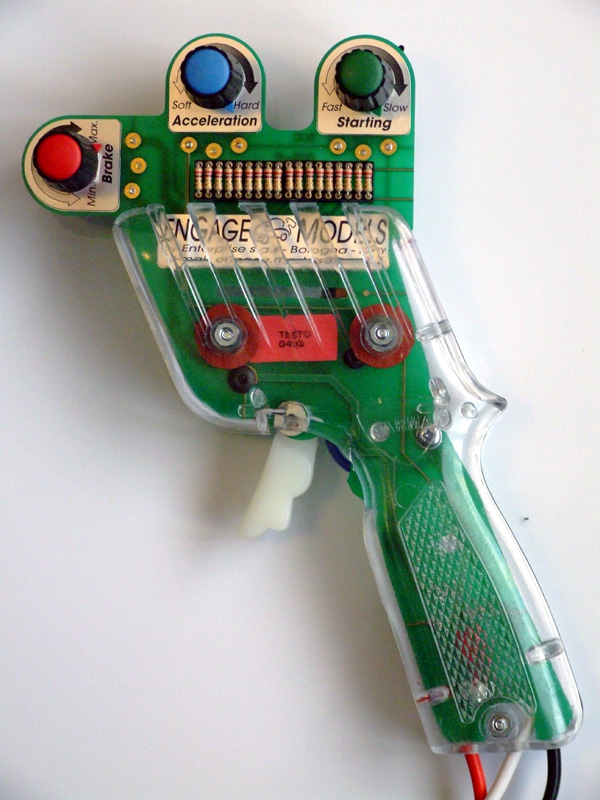

SCC002-P has been the first controller, entirely made in Italy on printed wiring.

Its simplicity and strength make it the ideal product for those who approach the slot cars world.

In this controller the current absorbed by the motor is controlled by means of a semiconductor, while in traditional ones this happens by means of a resistor.

Contacts wholly covered in gold assure a perfectly smooth sliding of the trigger, a very slow contact resistance and a very high protection against oxidizing agents.

With this controller you can use resistors sets from 9 Ohm to 100 Ohm. In the package you can find also two standard sets of resistors (one of 27 Ohm and one of 60 Ohm) for faster or slower control, and three adjustments for STARTING, TRACTION CONTROL and BRAKE.

You can adjust the starting according to the model, the kind of motor or track, or more simply to Your way of driving just using a potentiometer: all things that in the traditional ones are possible only by changing the resistor, with all the consequent potential mechanical end electrical problem. If only using the potentiometer You should not find the regulation more compliant to your wishes, You can easily replace the resistors bridge in order to obtain the expected response.

The "STARTING" regulation allows to vary the motor current during the phase of start.

If the regulation is on the position "slow", the current will be low and the car will start slowly.

If the regulation is on the position "fast" the current will be higher and the car will start quickly.

The "TRACTION CONTROL" regulation allows to get, independently from the regulation "Starting", a current output  slower or more rapid so to have a greater control in phase of acceleration especially going out of the curves If the regulation is on the position "Hard" the control is excluded.

If the regulation is on the position "Soft" the control is at the most.

The "BRAKE" regulation allows to vary the space of arrest of the model.

If the regulation is on the position "Max." the car will stop immediately, or anyway as rapid as possible according to the transmission  gear and the weight of the model.

If the regulation is on the position "Min." the arrest of the car will be slower.

Technical features:

Power Supply:9-18Vdc

Maximum Motor Current:6A

Operating Temperature:0-40°

Weight:260 g ( with cables)
